Prepared slides
For teaching and research observations of cells, tissue sections and suitable microorganisms. Specimen preparation affects the detail you can observe.
PRODUCT INFORMATION

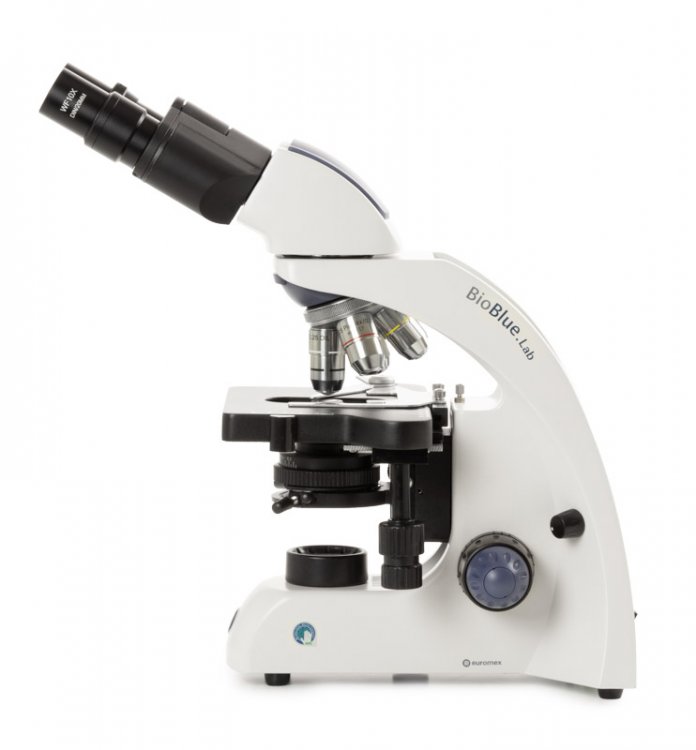

Euromex BioBlue.Lab Binocular Microscope BB.1152-PLi - Plan PL 4/10/S40/S100x oil IOS objectives
Price
£776.63 GBP
UK pricing
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
overview
Observe prepared specimens in detail
BioBlue.Lab binocular microscope with plan PL 4/10/S40/S100x oil IOS objectives, mechanical rackless stage and 3 W NeoLED illumination.
Use thin, suitably prepared specimens for transmitted-light observation. Match the objective, condenser setting and contrast technique to your specimen. This configuration is selected by its exact catalogue number.
Optical configuration
Read the supplied objectives and eyepiece specification below. Total magnification is eyepiece magnification multiplied by objective magnification.
Image capture
A camera requires a compatible optical port and adapter unless an integrated camera is explicitly listed. Binocular and trinocular heads have different camera options.
features
What the specification means in practice
Eyepieces
WF 10x/20 mm eyepieces
The eyepiece magnification combines with the objective. Field number helps compare the visible area when the optical setup is otherwise equivalent.
Head
Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm
Viewing heads affect how you use the instrument and whether a dedicated camera port is available. A camera and adapter may need to be purchased separately.
Objectives
Plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives
Objective magnification controls the scale of the observed image. Optical correction and numerical aperture are also important when comparing objectives.
Stage
Rackless mechanical stage, 150 × 140 mm; X–Y travel 75 × 30 mm (current manufacturer web specification)
Stage size determines the space for the specimen. Mechanical travel determines how far you can scan without repositioning the slide.
Focusing
Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 μm, 0.3 mm per rotation. Total travel approximately 28 mm. Friction adjustment
Fine focus helps resolve small changes in specimen height at higher magnification. Use the focusing controls and travel limits according to the manual.
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
The condenser shapes the illumination at the specimen. Its iris needs adjustment for the selected objective and observation technique.
Illumination & power
3 W NeoLED illumination. Internal power supply 100-240 V (CE)
Check both the illumination method and its power requirements. Adjust brightness for the sample and viewing conditions.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Start with the lowest-power objective and centre the specimen.
- Adjust focus, illumination and condenser for the selected objective.
- Move to higher power after centring. Use immersion oil only with an objective designated for oil.
specifications
Specifications for BB.1152-PLi
| Model number | BB.1152-PLi |
|---|---|
| Series | BioBlue.Lab · Education biological microscopes |
| Level | Advanced |
| Eyepieces | WF 10x/20 mm eyepieces |
| Head | Binocular head, Siedentopf type, 30° inclined tubes. Interpupillary distance 48-75 mm |
| Nosepiece | Reversed quadruple revolving nosepiece on ball-bearings |
| Objectives | Plan 4x, 10x, S40x, S100x oil immersion infinity corrected IOS objectives |
| Optics | All optics are anti-fungus treated and anti-reflection coated for maximum light throughput |
| Stage | Rackless mechanical stage, 150 × 140 mm; X–Y travel 75 × 30 mm (current manufacturer web specification) |
| Focusing | Coaxial coarse and fine adjustments with 200 graduations. Precision 1.5 μm, 0.3 mm per rotation. Total travel approximately 28 mm. Friction adjustment |
| Condenser | Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder |
| Illumination & power | 3 W NeoLED illumination. Internal power supply 100-240 V (CE) |
| Dimensions & weight | 377 x 205 x 260 mm (h x w x d) | 5.4 kg |
| Eyepiece tube diameter | 30 mm |
| Diopter adjustment | ±5 on the left tube |
| Head rotation | 360°, secured by a screw |
| Security | Kensington security slot |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
General microscopy technique: Identifying dust & cleaning — Video tutorial
General training video. It may show different equipment.
Open video separatelyGeneral microscopy technique: 100x objective — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied
Supplied with power cord, dust cover and 5 ml immersion oil in styrofoam case
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
PB.5276Euromex PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key,...AE.5227Euromex AE.5227 Glass fuses 1 A 250 V, 10 piecesBB.6010Euromex BB.6010 WF10x/20 mm eyepiece for BioBlue.Lab, 30mm tubeBB.6015Euromex BB.6015 WF15x/15 mm eyepiece for BioBlue.Lab, 30mm tubeBB.6020Euromex BB.6020 WF20x/11 mm eyepiece for BioBlue.Lab, 30mm tubeBB.6110Euromex BB.6110 WF10x/20 mm micrometer eyepiece with focusable lens for BioBlue.Lab, 30mm tubeBB.6099Euromex BB.6099 Pair of eyecups for BioBlue.LabBB.8804Euromex BB.8804 Plan 4x/0.10 objective. Working distance 17.92 mmBB.8810Euromex BB.8810 Plan 10x/0.25 objective. Working distance 2 mmBB.8820Euromex BB.8820 Plan 20x/0.40 objective. Working distance 1.2 mmBB.8840Euromex BB.8840 Plan S40x/0.65 objective. Working distance 0.65 mmBB.8860Euromex BB.8860 Plan S60x/0.80 objective. Working distance 0.19 mmBB.8800Euromex BB.8800 Plan S100x/1.25 oil immersion objective. Working distance 0.18 mmBB.7204Euromex BB.7204 Plan infinity corrected 4x/0.10 IOS objective. Working distance 7.18 mmBB.7210Euromex BB.7210 Plan infinity corrected 10x/0.25 IOS objective. Working distance 4.8 mmBB.7220Euromex BB.7220 Plan infinity corrected 20x/0.40 IOS objective. Working distance 5.27 mmBB.7240Euromex BB.7240 Plan infinity corrected S40x/0.65 IOS objective. Working distance 0.68 mmBB.7260Euromex BB.7260 Plan infinity corrected S60x/0.80 IOS objective. Working distance 0.50 mmBB.7200Euromex BB.7200 Plan infinity corrected S100x/1.25 oil immersion IOS objective. Working distance 0.2 mmBB.9732Euromex BB.9732 Polarization filter 32 mm diameterBB.9880Euromex BB.9880 Köhler attachment for BioBlue.LabAE.5130Euromex AE.5130 Universal SLR adapter with built-in 2x lens for standard 23.2 mm tube. Needs T2 adapterAE.5025Euromex AE.5025 T2 ring for Nikon D SLR digital cameraAE.5040Euromex AE.5040 T2 ring for Canon EOS SLR digital cameraBB.9900Euromex BB.9900 Aluminium case for BioBlue.LabBB.9993Euromex BB.9993 NeoLED replacement unit for BioBlue.LabPB.5155Euromex PB.5155 Microscope slides 76 x 26 mm, ground edges, 50 pieces per packPB.5168Euromex PB.5168 Cover glasses 22 x 22 mm, 0.13-0.17 mm, 100 piecesPB.5165Euromex PB.5165 Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 piecesPB.5245Euromex PB.5245 Lens cleaning paper, 100 sheets per packPB.5255Euromex PB.5255 Immersion oil, 25 ml. Refraction index n = 1.515PB.5274Euromex PB.5274 Iso propyl alcohol 99%, 200 mlPB.5275Euromex PB.5275 Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabsPB.5157-BEuromex PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per packPB.5157-WEuromex PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per packAE.9919Euromex AE.9919 Nylon bag for BioBlue.Lab, 56(h) x 29(w) x 23(d) cmAE.9916Euromex AE.9916 Euromex dust cover extra-large. For BioBlue (trino), EcoBlue (trino), BioBlue.Lab, Oxion, bScope, iScope, StereoBlue and...
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for BB.1152-PLi before ordering.
documents
Manuals and technical documents
support
Choose with confidence
Need help with BB.1152-PLi?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Need help selecting the correct product or pack size?Our team can review your application, compatibility and supply requirements.
EUROMEX · HAYU BIOMEDICAL
BB.1152-PLiExplore your equipment
See the configuration. Understand the workflow. Choose the right accessories.
Need help choosing this configuration?
