Capture and documentation
Record suitable microscopy observations for education, laboratory documentation and research.
PRODUCT INFORMATION
Euromex DC.6000i Euromex 6 MP USB 3.0 digital cooled camera with 1 inch CCD sensor
Price
£4,457.04 GBP
UK pricing
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
overview
Bring microscopy observations onto a screen
Euromex 6 MP USB 3.0 digital cooled camera with 1 inch CCD sensor.
Plan the complete imaging path before ordering: the microscope port, adapter, camera, connection and display or computer must work together. Resolution alone does not determine the detail resolved by the microscope.
Connection and software
Check the exact output interface, software and operating-system requirements in the model specification.
Optical compatibility
Confirm adapter reduction and camera sensor suitability for your microscope. Cameras and displays shown in illustrations may be separate accessories.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Confirm the microscope port and camera adapter.
- Connect to the supported computer or display and install the specified software.
- Set exposure and white balance, then calibrate measurements before use.
specifications
Specifications for DC.6000i
| Model number | DC.6000i |
|---|---|
| Series | Cameras · Microscope cameras and software |
| Level | All levels |
| Sensor | Sensor High Resolution CCD 1 inch with 2748 x 2200 pixels, 6 MP, Peltier cooledPixel size 4.54 μm x 4.54 μm and with RGB filter |
| Resolution & frame rate | Max 7 frames per second (2748 x 2200 pixels)Max 14 frames per second (2748 x 1092) |
| Interface & output | White balance Automatic/manualInterface USB-3, 5 Gbit/second |
| Software & compatibility | ImageFocus Alpha software, carton boxSoftware Windows 7/8/10/11 (32 and 64 bit configurations) |
| Mounting & optics | µm/division) calibration slide and 100-240 Vac to 12Vdc/3A power adapter for Peltier cooling |
| Contrast & polarization | Suitable for fluorescence microscopy |
| Camera & digital | Two-stage active-cooling System -45 °C below camera body temperature |
| Dimensions & weight | Dimensions 100 mm long x 100 mm diameter |
| Other features | Exposure Automatic or manual from 0.06 to 3600 secondsSensitivity 1000 mV @ 1/30 secOperation -10 up to 50° C, 30-80 % humidity |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
General microscopy technique: Parfocality adjustable adapters — Video tutorial
General training video. It may show different equipment.
Open video separatelyGeneral microscopy technique: Parfocality standard adapters — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied

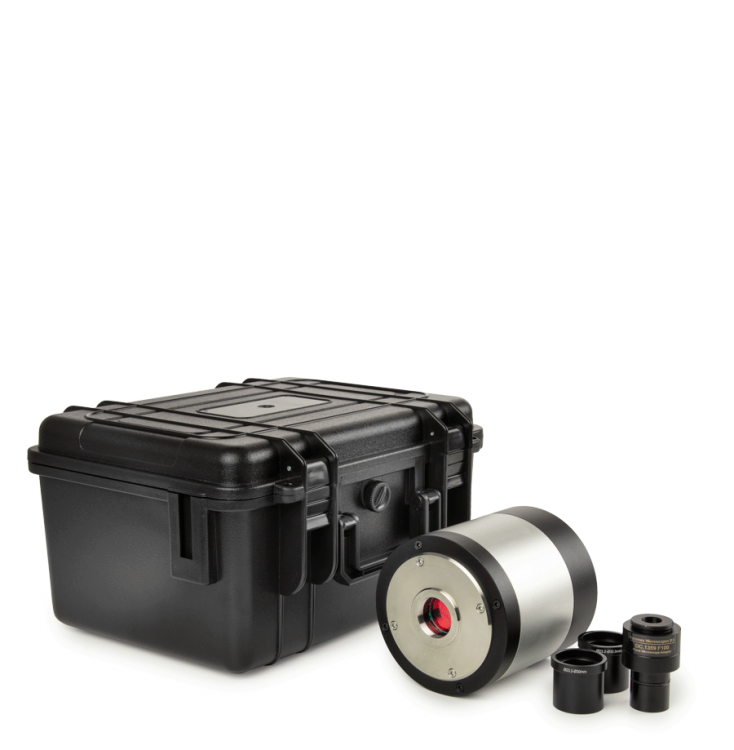

C-mount thread. Delivered without objective; Supplied with a carrying case together with USB cable, 1x C-mount objective, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
DC.1357Euromex DC.1357 C-mount adapter with 0.75x lens, fixed focal length and short barrel, for standard 23.2 mm tubes and 2/3 inchAE.1110Euromex AE.1110 Stage micrometer 1 mm divided in 100 parts, 10 µm per divisionAE.1111Euromex AE.1111 Stage micrometer 2 mm divided in 200 parts, 10 µm per divisionAE.1112Euromex AE.1112 Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 µm per division
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for DC.6000i before ordering.
documents
Manuals and technical documents
support
Choose with confidence
Need help with DC.6000i?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Need help selecting the correct product or pack size?Our team can review your application, compatibility and supply requirements.
EUROMEX · HAYU BIOMEDICAL
DC.6000iExplore your equipment
See the configuration. Understand the workflow. Choose the right accessories.
Need help choosing this configuration?
overview
Bring microscopy observations onto a screen
Euromex 6 MP USB 3.0 digital cooled camera with 1 inch CCD sensor.
Plan the complete imaging path before ordering: the microscope port, adapter, camera, connection and display or computer must work together. Resolution alone does not determine the detail resolved by the microscope.
Capture and documentation
Record suitable microscopy observations for education, laboratory documentation and research.
Connection and software
Check the exact output interface, software and operating-system requirements in the model specification.
Optical compatibility
Confirm adapter reduction and camera sensor suitability for your microscope. Cameras and displays shown in illustrations may be separate accessories.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Confirm the microscope port and camera adapter.
- Connect to the supported computer or display and install the specified software.
- Set exposure and white balance, then calibrate measurements before use.
specifications
Specifications for DC.6000i
| Model number | DC.6000i |
|---|---|
| Series | Cameras · Microscope cameras and software |
| Level | All levels |
| Sensor | Sensor High Resolution CCD 1 inch with 2748 x 2200 pixels, 6 MP, Peltier cooledPixel size 4.54 μm x 4.54 μm and with RGB filter |
| Resolution & frame rate | Max 7 frames per second (2748 x 2200 pixels)Max 14 frames per second (2748 x 1092) |
| Interface & output | White balance Automatic/manualInterface USB-3, 5 Gbit/second |
| Software & compatibility | ImageFocus Alpha software, carton boxSoftware Windows 7/8/10/11 (32 and 64 bit configurations) |
| Mounting & optics | µm/division) calibration slide and 100-240 Vac to 12Vdc/3A power adapter for Peltier cooling |
| Contrast & polarization | Suitable for fluorescence microscopy |
| Camera & digital | Two-stage active-cooling System -45 °C below camera body temperature |
| Dimensions & weight | Dimensions 100 mm long x 100 mm diameter |
| Other features | Exposure Automatic or manual from 0.06 to 3600 secondsSensitivity 1000 mV @ 1/30 secOperation -10 up to 50° C, 30-80 % humidity |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
General microscopy technique: Parfocality adjustable adapters — Video tutorial
General training video. It may show different equipment.
Open video separatelyGeneral microscopy technique: Parfocality standard adapters — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied
C-mount thread. Delivered without objective; Supplied with a carrying case together with USB cable, 1x C-mount objective, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
DC.1357Euromex DC.1357 C-mount adapter with 0.75x lens, fixed focal length and short barrel, for standard 23.2 mm tubes and 2/3 inchAE.1110Euromex AE.1110 Stage micrometer 1 mm divided in 100 parts, 10 µm per divisionAE.1111Euromex AE.1111 Stage micrometer 2 mm divided in 200 parts, 10 µm per divisionAE.1112Euromex AE.1112 Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 µm per division
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for DC.6000i before ordering.
documents
Manuals and technical documents
support
Choose with confidence
Need help with DC.6000i?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Euromex education catalogue 2026
Browse the education range and compare model configurations. Confirm the exact specification on the selected product page before ordering.
Open / download catalogue PDF
