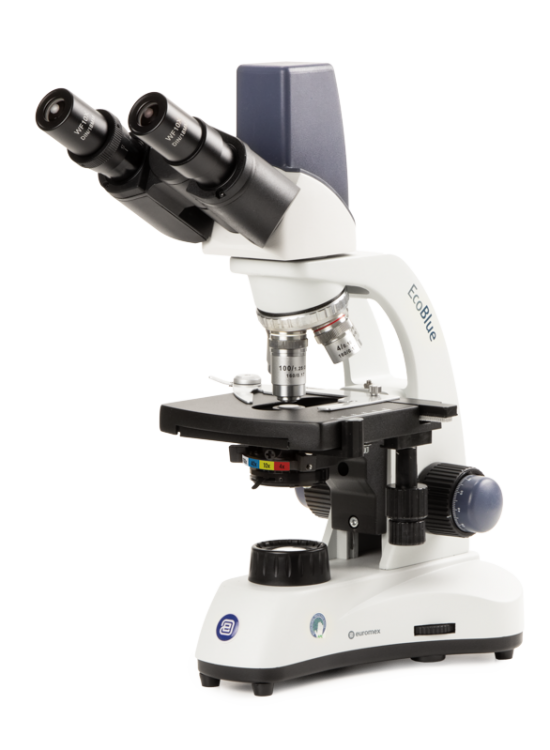

Euromex EcoBlue Digital Binocular Microscope EC.1157 - Achromatic 4/10/S40/S100x oil objectives
Price
£858.00 GBP
UK pricing
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
overview
Observe prepared specimens in detail
EcoBlue binocular microscope with achromatic 4/10/S40/S100x oil objectives, X-Y mechanical stage and 5 MP digital CMOS camera. With 1 W Dual color NeoLED illumination. Cordless use with 3 rechargeable AA batteries and external 5 Vdc USB-C 100-240 Vac multiplug power adapter.
Use thin, suitably prepared specimens for transmitted-light observation. Match the objective, condenser setting and contrast technique to your specimen. This configuration is selected by its exact catalogue number.
Optical configuration
Read the supplied objectives and eyepiece specification below. Total magnification is eyepiece magnification multiplied by objective magnification.
Image capture
A camera requires a compatible optical port and adapter unless an integrated camera is explicitly listed. Binocular and trinocular heads have different camera options.
features
What the specification means in practice
Eyepieces
Secured DIN WF 10x/18 mm eyepiece
The eyepiece magnification combines with the objective. Field number helps compare the visible area when the optical setup is otherwise equivalent.
Head
Binoocular head, 30° inclined, 360° rotatable
Viewing heads affect how you use the instrument and whether a dedicated camera port is available. A camera and adapter may need to be purchased separately.
Objectives
Achromatic 4x, 10x, S40x, S100x oil immersion objectives
Objective magnification controls the scale of the observed image. Optical correction and numerical aperture are also important when comparing objectives.
Stage
Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage
Stage size determines the space for the specimen. Mechanical travel determines how far you can scan without repositioning the slide.
Focusing
Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment
Fine focus helps resolve small changes in specimen height at higher magnification. Use the focusing controls and travel limits according to the manual.
Condenser
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
The condenser shapes the illumination at the specimen. Its iris needs adjustment for the selected objective and observation technique.
Illumination & power
1 W Dual color (white and warm halogen color LED) NeoLED(tm) illumination with external 5Vdc USB-C and multiplug 100-240 V power adapter (CE) (50/60 Hz)
Check both the illumination method and its power requirements. Adjust brightness for the sample and viewing conditions.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Start with the lowest-power objective and centre the specimen.
- Adjust focus, illumination and condenser for the selected objective.
- Move to higher power after centring. Use immersion oil only with an objective designated for oil.
specifications
Specifications for EC.1157
| Model number | EC.1157 |
|---|---|
| Series | EcoBlue · Education biological microscopes |
| Level | Entry level |
| Eyepieces | Secured DIN WF 10x/18 mm eyepiece |
| Head | Binoocular head, 30° inclined, 360° rotatable |
| Nosepiece | Forwarded quadruple revolving nosepiece on ball-bearings |
| Objectives | Achromatic 4x, 10x, S40x, S100x oil immersion objectives |
| Optics | All optics are anti-fungus treated and anti-reflection coated for maximum light throughput |
| Stage | Plain 123 x 128 mm stage with integrated 70 x 27 mm X-Y mechanical stage |
| Focusing | Coaxial coarse and fine adjustments with 200 graduations. Precision 12.5 μm, 2.5 mm per rotation. Total travel approximately 15 mm. Friction adjustment |
| Condenser | Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder |
| Illumination & power | 1 W Dual color (white and warm halogen color LED) NeoLED(tm) illumination with external 5Vdc USB-C and multiplug 100-240 V power adapter (CE) (50/60 Hz) |
| Camera & digital | Built-in 5 MP CMOS camera with USB-2 interface, 2560 x 1920 pixels |
| Finish & build | Paint with Antibacterial Protection Layer |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
Series tutorial: EcoBlue — tutorial
Manufacturer tutorial for the named series or configuration. Match the supplied components to the specification above.
Open video separatelyGeneral microscopy technique: Identifying dust & cleaning — Video tutorial
General training video. It may show different equipment.
Open video separatelyGeneral microscopy technique: 100x objective — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied
Supplied with ImageFocus Plus software; Supplied with power cord, dust cover and 5ml immersion oil in styrofoam case
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
PB.5276Euromex PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key,...AE.5571Euromex AE.5571 Wide field eyepiece WF 5x/18 mmEC.6010Euromex EC.6010 HWF 10x/18 mm eyepiece for EcoBlueEC.6010-MEuromex EC.6010-M HWF 10x/18 mm eyepiece with micrometer scale for EcoBlueEC.6010-PEuromex EC.6010-P HWF 10x/18 mm eyepiece with pointer for EcoBlueEC.6015Euromex EC.6015 HWF 15x/12 mm eyepiece for EcoBlueEC.6099Euromex EC.6099 Pair of eyecups for EcoBlueEC.7004Euromex EC.7004 Achromatic 4x/0.10 objective for EcoBlueEC.7010Euromex EC.7010 Achromatic 10x/0.25 objective for EcoBlueEC.7020Euromex EC.7020 Achromatic 20x/0.40 objective for EcoBlueEC.7040Euromex EC.7040 Achromatic S40x/0.65 objective for EcoBlueEC.7060Euromex EC.7060 Achromatic S60x/0.85 objective for EcoBlueEC.7000Euromex EC.7000 Achromatic S100x/1.25 oil immersion objective for EcoBlueAE.5511Euromex AE.5511 Discussion head for EcoBlue seriesEC.9500Euromex EC.9500 Attachable mechanical 51 x 26 mm X-Y stage with double Vernier and separate horizontal adjustments knobs for EcoBlue seriesAE.5150Euromex AE.5150 Simple polarization attachment. Analyzer 18 mm diameter to be mounted in eyepiece (eyepiece rotatable), polarizer 32 mm...AE.5152Euromex AE.5152 Polarization attachment. Analyzer mounted over eyepiece and small (75 x 50 mm) 360° rotatable stage with built-in...AE.5154Euromex AE.5154 Polarizer in mount, to place over eyepieceEC.9710Euromex EC.9710 Frosted white filterEC.9981Euromex EC.9981 1 W LED replacement unit for EcoBlue revision 1EC.9991Euromex EC.9991 1 W NeoLED replacement unit for EcoBlue revision 1SL.1379Euromex SL.1379 Spare halogen 20W 12V bulb for EcoBlue polarization modelsEC.9975Euromex EC.9975 External mains/charger adapter 100-240 Vac/4.5 Vdc (50/60Hz)AE.5130Euromex AE.5130 Universal SLR adapter with built-in 2x lens for standard 23.2 mm tube. Needs T2 adapterAE.5025Euromex AE.5025 T2 ring for Nikon D SLR digital cameraAE.5040Euromex AE.5040 T2 ring for Canon EOS SLR digital cameraPB.5155Euromex PB.5155 Microscope slides 76 x 26 mm, ground edges, 50 pieces per packPB.5165Euromex PB.5165 Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 piecesPB.5168Euromex PB.5168 Cover glasses 22 x 22 mm, 0.13-0.17 mm, 100 piecesPB.5245Euromex PB.5245 Lens cleaning paper, 100 sheets per packPB.5255Euromex PB.5255 Immersion oil, 25 ml. Refraction index n = 1.515PB.5274Euromex PB.5274 Iso propyl alcohol 99%, 200 mlPB.5275Euromex PB.5275 Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabsAE.9918Euromex AE.9918 Nylon microscope bag, dimensions 26 x 17 x 40 cmAE.5227Euromex AE.5227 Glass fuses 1 A 250 V, 10 piecesPB.5157-BEuromex PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per packPB.5157-WEuromex PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per packAE.9912Euromex AE.9912 Euromex dust cover mediumAE.1370Euromex AE.1370 Set of rechargeable batteries
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for EC.1157 before ordering.
documents
Manuals and technical documents
support
Choose with confidence
Need help with EC.1157?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Need help selecting the correct product or pack size?Our team can review your application, compatibility and supply requirements.
