Prepared slides
For teaching and research observations of cells, tissue sections and suitable microorganisms. Specimen preparation affects the detail you can observe.
PRODUCT INFORMATION

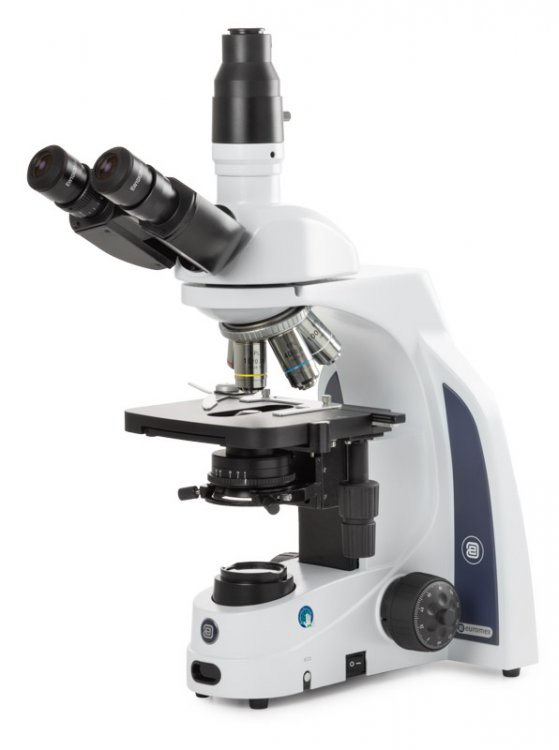

Euromex iScope Trinocular Microscope IS.1153-EPL - EWF 10x/20 mm eyepieces
Price
£998.53 GBP
UK pricing
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
overview
Observe prepared specimens in detail
iScope trinocular microscope with EWF 10x/20 mm eyepieces, E-plan EPL 4/10/S40/S100x oil objectives and 3 W NeoLED illumination.
Use thin, suitably prepared specimens for transmitted-light observation. Match the objective, condenser setting and contrast technique to your specimen. This configuration is selected by its exact catalogue number.
Optical configuration
Read the supplied objectives and eyepiece specification below. Total magnification is eyepiece magnification multiplied by objective magnification.
Image capture
A camera requires a compatible optical port and adapter unless an integrated camera is explicitly listed. Binocular and trinocular heads have different camera options.
features
What the specification means in practice
Eyepieces
EWF 10x/20 mm eyepieces
The eyepiece magnification combines with the objective. Field number helps compare the visible area when the optical setup is otherwise equivalent.
Head
Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with diopter adjustment on left eyepiece
Viewing heads affect how you use the instrument and whether a dedicated camera port is available. A camera and adapter may need to be purchased separately.
Objectives
E-plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion objectives
Objective magnification controls the scale of the observed image. Optical correction and numerical aperture are also important when comparing objectives.
Stage
156 x 138 mm stage equipped with integrated 79 x 52 mm mechanical stage
Stage size determines the space for the specimen. Mechanical travel determines how far you can scan without repositioning the slide.
Focusing
Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotationTotal travel approximately 24 mmRack-stop for protection of slides and objectives. Friction adjustment
Fine focus helps resolve small changes in specimen height at higher magnification. Use the focusing controls and travel limits according to the manual.
Condenser
Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders
The condenser shapes the illumination at the specimen. Its iris needs adjustment for the selected objective and observation technique.
Illumination & power
Diascopic intensity adjustable 3 W NeoLED illumination with Internal 100-240 V power supply (CE)iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energyCSS - Cable Storage System. The Cable Storage System of the iScope allows the user to easily insert the power cable into the back of the instrument, which enables easy storage
Check both the illumination method and its power requirements. Adjust brightness for the sample and viewing conditions.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Start with the lowest-power objective and centre the specimen.
- Adjust focus, illumination and condenser for the selected objective.
- Move to higher power after centring. Use immersion oil only with an objective designated for oil.
specifications
Specifications for IS.1153-EPL
| Model number | IS.1153-EPL |
|---|---|
| Series | iScope · Education biological microscopes |
| Level | Professional |
| Eyepieces | EWF 10x/20 mm eyepieces |
| Head | Trinocular version with Siedentopf 30° inclined tubes. Interpupillary distance 48-76 mm with diopter adjustment on left eyepiece |
| Nosepiece | Revolving quintuple reversed nosepiece on ball bearings |
| Objectives | E-plan EPL 4x/0.10, 10x/0.25, S40x/0.65, S100x/1.25 oil immersion objectives |
| Optics | All optics are anti-fungus treated and anti-reflection coated for maximum light throughput |
| Stage | 156 x 138 mm stage equipped with integrated 79 x 52 mm mechanical stage |
| Focusing | Coaxial coarse and fine adjustments with 200 graduations. Precision 1 μm, 0.2 mm per rotationTotal travel approximately 24 mmRack-stop for protection of slides and objectives. Friction adjustment |
| Condenser | Height adjustable Abbe N.A. 1.25 condenser with opening for optional sliders |
| Illumination & power | Diascopic intensity adjustable 3 W NeoLED illumination with Internal 100-240 V power supply (CE)iCare Sensor: the illumination of the microscope automatically switches off when the microscopist steps away from his position, saving energyCSS - Cable Storage System. The Cable Storage System of the iScope allows the user to easily insert the power cable into the back of the instrument, which enables easy storage |
| Finish & build | Paint with Antibacterial Protection Layer |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
Series tutorial: iScope — tutorial (EN)
Manufacturer tutorial for the named series or configuration. Match the supplied components to the specification above.
Open video separatelyGeneral microscopy technique: Identifying dust & cleaning — Video tutorial
General training video. It may show different equipment.
Open video separatelyGeneral microscopy technique: 100x objective — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied
Supplied with power cord, 500 mA 250 V spare fuse, 5 ml immersion oil and dust cover in styrofoam case
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
PB.5276Euromex PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key,...PB.5157-BEuromex PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per packPB.5157-WEuromex PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per packIS.4300Euromex IS.4300 Aluminium carry case for iScopeAE.9919Euromex AE.9919 Nylon bag for BioBlue.Lab, 56(h) x 29(w) x 23(d) cmIS.5700Euromex IS.5700 Ergonomic tilting head 5-35° for iScope IOS series. Only iScope infinity systemsIS.6010Euromex IS.6010 EWF 10x/20 mm eyepiece for iScope, 23.2 mm tubeIS.6010-CEuromex IS.6010-C EWF 10x/20 mm eyepiece for iScope, 23.2 mm tube with crosshairIS.6010-PEuromex IS.6010-P EWF 10x/20 mm micrometer eyepiece with pointer for iScope, 23.2 mm tubeIS.6010-CMEuromex IS.6010-CM EWF 10x/20 mm eyepiece (Ø23.2mm) for iScope with 10/100 micrometer and cross hairIS.6015Euromex IS.6015 WF 15x/16 mm eyepiece for iScope, 23.2mm tubeIS.6099Euromex IS.6099 Pair of eyecups for iScope finite modelsIS.6210Euromex IS.6210 EWF 10x/22 mm eyepiece, 30 mm tube for iScopeIS.6210-CEuromex IS.6210-C EWF 10x/22 mm eyepiece with crosshair for iScope, 30 mm tubeIS.6210-PEuromex IS.6210-P EWF 10x/22 mm eyepiece with pointer for iScope, 30 mm tubeIS.6210-CMEuromex IS.6210-CM EWF 10x/22 mm eyepiece, 30 mm tube for iScope with 10/100 micrometer and cross hairIS.6212Euromex IS.6212 WF 12.5x/17 mm eyepiece for iScope, 30 mm tubeIS.6215Euromex IS.6215 WF 15x/16 mm eyepiece for iScope, 30 mm tubeIS.6220Euromex IS.6220 WF 20x/12 mm eyepiece for iScope, 30 mm tubeIS.6299Euromex IS.6299 Pair of eyecups for iScope infinity modelsIS.7104Euromex IS.7104 E-plan EPL 4x/0.10 objective for iScope Life science. Working distance 15.2 mmIS.7110Euromex IS.7110 E-plan EPL 10x/0.25 objective for iScope Life science. Working distance 5.5 mmIS.7120Euromex IS.7120 E-plan EPL 20x/0.40 objective for iScope. Working distance 3.5 mmIS.7140Euromex IS.7140 E-plan EPL S40x/0.65 objective for iScope Life science. Working distance 0.45 mmIS.7160Euromex IS.7160 E-plan EPL S60x/0.85 objective for iScope. Working distance 0.45 mmIS.7100Euromex IS.7100 E-plan EPL S100x/1.25 oil-immersion objective for iScope Life science. Working distance 0.13 mm Objectives for iScope...IS.7710Euromex IS.7710 Plan PLPH 10x/0.25 phase contrast objective for iScope Life science. Working distance 12.2 mmIS.7720Euromex IS.7720 Plan PLPH 20x/0.40 phase contrast objective for iScope Life science. Working distance 5IS.7740Euromex IS.7740 mm PLPH S40x/0.65 phase contrast objective for iScope Life science. Working distance 0.37 Plan mmIS.7700Euromex IS.7700 Plan PLPH S100x/1.25 oil-immersion phase contrast objective for iScope Life science. Working distance 0.13 mmIS.8804Euromex IS.8804 E-plan EPLi 4x/0.10 IOS objective for iScope Life science. Working distance 15.4 mmIS.8810Euromex IS.8810 E-plan EPLi 10x/0.25 IOS objective for iScope Life science. Working distance 5.8 mmIS.8840Euromex IS.8840 E-plan EPLi S40x/0.65 IOS objective for iScope. Working distance 0.43 mmIS.8800Euromex IS.8800 E-plan EPLi S100x/1.25 IOS oil-immersion objective for iScope Life science. Working distance 0.13 mm Objectives for...IS.7202Euromex IS.7202 Plan PLi 2x/0.05 IOS objective for iScope Life science, working distance 18.3 mm. Best to be used together with...IS.7204Euromex IS.7204 Plan PLi 4x/0.10 IOS objective for iScope Life science. Working distance 15.4 mmIS.7210Euromex IS.7210 Plan PLi 10x/0.25 IOS objective for iScope Life science. Working distance 10 mmIS.7220Euromex IS.7220 Plan PLi 20x/0.40 IOS objective for iScope Life science. Working distance 5.1 mmIS.7240Euromex IS.7240 Plan PLi S40x/0.65 IOS objective for iScope Life science. Working distance 0.54 mmIS.7250Euromex IS.7250 distance Plan 0.55 mm IOS oil immersion objective for iScope. Working distance 0.12 mm PLi S50x/0.95IS.7260Euromex IS.7260 Plan PLi S60x/0.85 IOS objective for iScope Life science. Working distance 0.14 mmIS.7200Euromex IS.7200 Plan PLi S100x/1.25 oil-immersion IOS objective for iScope. Working distance 0.13 mmIS.7200-IEuromex IS.7200-I Plan PLi S100x/1.25 IOS oil-immersion objective with built-in iris diaphragm for iScope Life science. Working distance...IS.7200-WEuromex IS.7200-W Plan PLi S100x/1.10 IOS water immersion objective . Working distance 0.14 mm. Cover glass 0,17 mm correctedIS.8910Euromex IS.8910 Plan PLPHi 10x/0.25 phase contrast IOS infinity corrected objective for iScope. Working distance 10.2 mmIS.8920Euromex IS.8920 Plan PLPHi 20x/0.40 phase contrast IOS infinity corrected objective for iScope. Working distance 5.1 mmIS.8940Euromex IS.8940 Plan PLPHi S40x/0.65 phase contrast IOS infinity corrected objective for iScope. Working distance 0.5 mmIS.8900Euromex IS.8900 Plan PLPHi S100x/1.25 phase contrast IOS infinity corrected oil-immersion objective for iScope. Working distance 0.13 mmIS.7404Euromex IS.7404 Plan Fluarex PLFi 4x/0.13 IOS objective for iScope Life science. Working distance 16,4 mmIS.7410Euromex IS.7410 Plan Fluarex PLFi 10x/0.30 IOS objective for iScope Life science. Working distance 12 mmIS.7440Euromex IS.7440 Plan Fluarex PLFi S40x/0.75 IOS objective for iScope. Working distance 0.34 mmIS.7400Euromex IS.7400 Plan Fluarex PLFi S100x/1.30 IOS oil-immersion objective for iScope Life science. Working distance 0.20 mm Objectives...IS.9149Euromex IS.9149 Telescope for phase contrast for 23.2 mm tubeIS.9102Euromex IS.9102 Standard Abbe condenser 1.25 NA with slot for darkfield and phase contrast slidersIS.9105Euromex IS.9105 Swing-out condenser 0.9/1.25IS.9150Euromex IS.9150 Cardioid darkfield condenser with integrated 5 W LED light source and external 100-240 V mains adapter86.521Euromex 86.521 Plan PL S100x/1.25 oil immersion objective with built-in iris diaphragm. Working distance 0.33 mmIS.9124Euromex IS.9124 Zernike phase contrast set with PLPH 10/20/40/100 non-IOS brightfield and darkfieldIS.9127Euromex IS.9127 positionphase contrast set with PLPHi 10/20/40/100 IOS brightfield and darkfield position ZernikeIS.9148Euromex IS.9148 Telescope for phase contrast for 30 mm tubeIS.9162Euromex IS.9162 Phase contrast slider set with 10x and S40x PLPHi IOS infinity corrected objectives and annuli for 10x/S40x PLPHi IOS...IS.9163Euromex IS.9163 Phase contrast slider set with 20x and S100x PLPHi IOS infinity corrected objectives and annuli for 20x/S100x PLPHi IOS...IS.9170Euromex IS.9170 Slider with darkfield stop for iScope up to 400x magnification Fluorescence attachments iScopeIS.9194Euromex IS.9194 Slider with phase contrast annuli for S40x phase contrast IOS objective for iScope (without objective, condenser and...IS.9600Euromex IS.9600 Polarization filter 45 mm for lamp house of iScopeIS.9601Euromex IS.9601 Polarization set for iScope without Smart Light Control: simple rotating polarizer for lamp house and fix polarizer...IS.9700Euromex IS.9700 Blue filter 45 mm for lamp house of iScopeIS.9702Euromex IS.9702 Green filter 45 mm for lamp house of iScopeIS.9704Euromex IS.9704 Yellow filter 45 mm for lamp house of iScopeIS.9706Euromex IS.9706 White opaque filter 45 mm for lamp house of iScopeIS.9800Euromex IS.9800 Single photo tube attachment with one 23.2 mm tube for IS.5700 ergonomic tilting head of iScope infinity systemsIS.9880Euromex IS.9880 Köhler attachment for iScopeAE.5168-IEuromex AE.5168-I Heating stage for iScope series with controller, only with new microscopesAE.5130Euromex AE.5130 Universal SLR adapter with built-in 2x lens for standard 23.2 mm tube. Needs T2 adapterAE.5025Euromex AE.5025 T2 ring for Nikon D SLR digital cameraAE.5040Euromex AE.5040 T2 ring for Canon EOS SLR digital cameraPB.5155Euromex PB.5155 Microscope slides 76 x 26 mm, ground edges, 50 pieces per packPB.5160Euromex PB.5160 Microscope slides 76 x 26 mm with cavity, grinded edges. 10 pieces per packPB.5165Euromex PB.5165 Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 piecesPB.5168Euromex PB.5168 Cover glasses 22 x 22 mm, 0.13-0.17 mm, 100 piecesPB.5255Euromex PB.5255 Immersion oil, 25 ml. Refraction index n = 1.515PB.5274Euromex PB.5274 Iso propyl alcohol 99%, 200 mlPB.5245Euromex PB.5245 Lens cleaning paper, 100 sheets per packPB.5275Euromex PB.5275 Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabsAE.3684Euromex AE.3684 Glass fuses 500 mA 250 V, 10 piecesIS.9993Euromex IS.9993 NeoLED replacement unit for iScopeAE.9916Euromex AE.9916 Euromex dust cover extra-large. For BioBlue (trino), EcoBlue (trino), BioBlue.Lab, Oxion, bScope, iScope, StereoBlue and...
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for IS.1153-EPL before ordering.
documents
Manuals and technical documents
support
Choose with confidence
Need help with IS.1153-EPL?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Need help selecting the correct product or pack size?Our team can review your application, compatibility and supply requirements.
