Prepared slides
For teaching and research observations of cells, tissue sections and suitable microorganisms. Specimen preparation affects the detail you can observe.
PRODUCT INFORMATION
Euromex MicroBlue Binocular Microscope MB.1152 - Achromatic 4/10/S40/S100x oil DIN 35 mm objectives
Price
£381.03 GBP
UK pricing
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
overview
Observe prepared specimens in detail

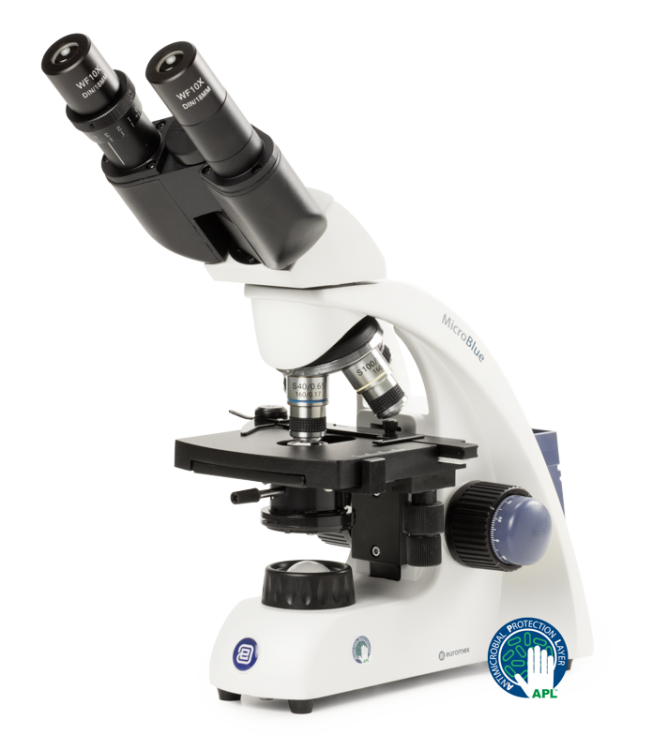

MicroBlue binocular microscope with achromatic 4/10/S40/S100x oil DIN 35 mm objectives, mechanical stage and 1 W Dual color LED illumination. Cordless use with 3 rechargeable AA batteries and external 5 Vdc USB-C multiplug 100-240 Vac multiplug power adapter.
Use thin, suitably prepared specimens for transmitted-light observation. Match the objective, condenser setting and contrast technique to your specimen. This configuration is selected by its exact catalogue number.
Optical configuration
Read the supplied objectives and eyepiece specification below. Total magnification is eyepiece magnification multiplied by objective magnification.
Image capture
A camera requires a compatible optical port and adapter unless an integrated camera is explicitly listed. Binocular and trinocular heads have different camera options.
features
What the specification means in practice
Eyepieces
Secured wide field eyepieces WF 10x/18 mm
The eyepiece magnification combines with the objective. Field number helps compare the visible area when the optical setup is otherwise equivalent.
Head
Binocular 45° inclined tube, 360° rotation. Tube length 160 mm
Viewing heads affect how you use the instrument and whether a dedicated camera port is available. A camera and adapter may need to be purchased separately.
Objectives
Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25, DIN 35 mm parfocal objectivesThe S40x objective is spring-mounted
Objective magnification controls the scale of the observed image. Optical correction and numerical aperture are also important when comparing objectives.
Stage
Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage
Stage size determines the space for the specimen. Mechanical travel determines how far you can scan without repositioning the slide.
Focusing
Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm, 3 mm per rotation. Total travel approximately 15 mm. Friction adjustmentFriction of focus control can be adjusted
Fine focus helps resolve small changes in specimen height at higher magnification. Use the focusing controls and travel limits according to the manual.
Condenser
N.A.1.25 condenser with iris diaphragm and filter holder
The condenser shapes the illumination at the specimen. Its iris needs adjustment for the selected objective and observation technique.
Illumination & power
1 W Dual color LED illumination with external 5 Vdc USB-C and 100-240 Vac multiplug power adapter (CE) (50/60 Hz). Cordless use with 3 rechargeable AA NiMH batteries
Check both the illumination method and its power requirements. Adjust brightness for the sample and viewing conditions.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Start with the lowest-power objective and centre the specimen.
- Adjust focus, illumination and condenser for the selected objective.
- Move to higher power after centring. Use immersion oil only with an objective designated for oil.
specifications
Specifications for MB.1152
| Model number | MB.1152 |
|---|---|
| Series | MicroBlue · Education biological microscopes |
| Level | Entry level |
| Eyepieces | Secured wide field eyepieces WF 10x/18 mm |
| Head | Binocular 45° inclined tube, 360° rotation. Tube length 160 mm |
| Nosepiece | Nosepiece for 4 objectives. Ball-bearing mechanism and click-stops |
| Objectives | Achromatic 4x N.A. 0.10, 10x N.A. 0.25, S40x N.A. 0.65 and S100x N.A. 1.25, DIN 35 mm parfocal objectivesThe S40x objective is spring-mounted |
| Stage | Square stage 115 x 100 mm with 55 x 22 mm X-Y translation stage |
| Focusing | Coaxial coarse and fine adjustments with 200 graduations. Precision 15 μm, 3 mm per rotation. Total travel approximately 15 mm. Friction adjustmentFriction of focus control can be adjusted |
| Condenser | N.A.1.25 condenser with iris diaphragm and filter holder |
| Illumination & power | 1 W Dual color LED illumination with external 5 Vdc USB-C and 100-240 Vac multiplug power adapter (CE) (50/60 Hz). Cordless use with 3 rechargeable AA NiMH batteries |
| Finish & build | Paint with Antibacterial Protection Layer |
| Dimensions & weight | 298 x 151 x 202 mm (h x w x d) | 2.8 kg |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
Series tutorial: MicroBlue — tutorial
Manufacturer tutorial for the named series or configuration. Match the supplied components to the specification above.
Open video separatelyGeneral microscopy technique: Identifying dust & cleaning — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied
Supplied with manual and dust cover in styrofoam case
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
AE.5571Euromex AE.5571 Wide field eyepiece WF 5x/18 mmMB.6010Euromex MB.6010 WF 10x/18 mm eyepiece for MicroBlueMB.6010-MEuromex MB.6010-M WF 10x/18 mm eyepiece with micrometer scale for MicroBlueMB.6010-PEuromex MB.6010-P WF 10x/18 mm eyepiece with pointer for MicroBlueMB.6015Euromex MB.6015 WF 15x/11 mm eyepiece for MicroBlueMB.6020Euromex MB.6020 WF 20x/9 mm eyepiece for MicroBlueMB.6099Euromex MB.6099 Pair of eyecups for MicroBlueMB.7004Euromex MB.7004 Achromatic 4x/0.10 objective for MicroBlue. Parfocal 35 mmMB.7010Euromex MB.7010 Achromatic 10x/0.25 objective for MicroBlue. Parfocal 35 mmMB.7020Euromex MB.7020 Achromatic 20x/0.40 objective for MicroBlue. Parfocal 35 mmMB.7040Euromex MB.7040 Achromatic 40x/0.65 objective for MicroBlue. Parfocal 35 mmMB.7060Euromex MB.7060 Achromatic 60x/0.85 objective for MicroBlue. Parfocal 35 mmMB.7000Euromex MB.7000 Achromatic 100x/1.25 objective for MicroBlue. Parfocal 35 mmMB.9710Euromex MB.9710 Frosted white filterMB.9975Euromex MB.9975 External mains/charger adapter 100-240 Vac/4.5Vdc (50/60Hz)MB.9981Euromex MB.9981 1W LED replacement unit for MicroBlueMB.9991Euromex MB.9991 1W NeoLED replacement unit for bin and trinocular MicroBlueMB.9981-2Euromex MB.9981-2 1W LED replacement unit for MicroBlue revision 2 (double pen push in type)MB.9991-2Euromex MB.9991-2 1W NeoLED replacement unit for bino- and trinocular MicroBlue revision 2 (double pen push in type)PB.5155Euromex PB.5155 Microscope slides 76 x 26 mm, ground edges, 50 pieces per packPB.5165Euromex PB.5165 Cover glasses 18 x 18 mm, 0.13-0.17 mm, 100 piecesPB.5168Euromex PB.5168 Cover glasses 22 x 22 mm, 0.13-0.17 mm, 100 piecesPB.5245Euromex PB.5245 Lens cleaning paper, 100 sheets per packPB.5255Euromex PB.5255 Immersion oil, 25 ml. Refraction index n = 1.515PB.5274Euromex PB.5274 Iso propyl alcohol 99%, 200 mlPB.5275Euromex PB.5275 Cleaning kit: lens fluid, lint free lens tissue/paper, brush, air blower, cotton swabsPB.5276Euromex PB.5276 Microscope maintenance and servicing kit, 16pcs: cleaning brush, 6 pcs screwdriver set, air blower, 3 pcs Allen key,...MB.9900Euromex MB.9900 Aluminium transport caseAE.9918Euromex AE.9918 Nylon microscope bag, dimensions 26 x 17 x 40 cmPB.5157-BEuromex PB.5157-B Microscope slides 76 x 26 mm, ground edges. Blue frosted side, 50 pieces per packPB.5157-WEuromex PB.5157-W Microscope slides 76 x 26 mm, ground edges. White frosted side, 50 pieces per packAE.9912Euromex AE.9912 Euromex dust cover mediumAE.1370Euromex AE.1370 Set of rechargeable batteries
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for MB.1152 before ordering.
documents
Manuals and technical documents
support
Choose with confidence
Need help with MB.1152?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Need help selecting the correct product or pack size?Our team can review your application, compatibility and supply requirements.
