Capture and documentation
Record suitable microscopy observations for education, laboratory documentation and research.
PRODUCT INFORMATION

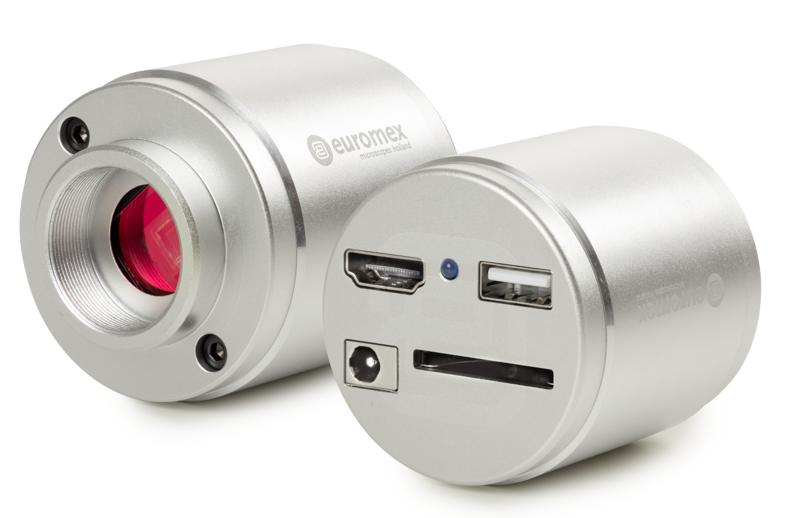

Euromex VC.3023 HD-Mini camera, color High definition 2 MP high speed CMOS camera, 1920 x 1080p, stand- alone usage with
Price
£328.41 GBP
UK pricing
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
overview
Bring microscopy observations onto a screen
HD-Mini camera, color High definition 2 MP high speed CMOS camera, 1920 x 1080p, stand- alone usage with standard 4GB SD card, HDMI output. With built-in mouse-driven capture software.
Plan the complete imaging path before ordering: the microscope port, adapter, camera, connection and display or computer must work together. Resolution alone does not determine the detail resolved by the microscope.
Connection and software
Check the exact output interface, software and operating-system requirements in the model specification.
Optical compatibility
Confirm adapter reduction and camera sensor suitability for your microscope. Cameras and displays shown in illustrations may be separate accessories.
gallery
See the equipment and its details
visual guide
Understand the workflow
HAYU learning illustration. It explains the workflow and is not a drawing of the supplied equipment.
- Confirm the microscope port and camera adapter.
- Connect to the supported computer or display and install the specified software.
- Set exposure and white balance, then calibrate measurements before use.
specifications
Specifications for VC.3023
| Model number | VC.3023 |
|---|---|
| Series | Cameras · Microscope cameras and software |
| Level | All levels |
| Sensor | Sensor: Sony 1/2,8” HD 2 MP CMOS sensor, HDTV 1080p (50/60 Hz)Pixel size: 2.9 x 2.9 µm |
| Resolution & frame rate | Pixels: 1920 x 1080 (viewing and capture mode)1080p video recording modeHDMI 60 fps @ 1920 x 1080 pixels HDMIVideo format 1920 x 1080p, H264 encoded MP4 file (50-60 fps) |
| Interface & output | White balance: Automatic and manual, ROIInterface: Digital HDMI 1.4 |
| Software & compatibility | Stand alone usage with mouse driven built-in embedded software with measurement functions |
| Mounting & optics | Mounting: C-mount interfacePower supply: external main adapter 100-240 Vac to12Vdc/1A |
| Dimensions & weight | Dimensions: 51 mm in diameter, 60 mm long |
| Other features | Manual and automatic exposure time 0.01-1000 msScan: Progressive scanNoise 3D Noise Reduction function. Gain, Saturation Sharpness, GammaVideo playback and image browser. Measurement functionImage format 2MP JPEG, up to 10x digital zoom functionSensitivity 1.3 V/lux/s , dynamic range 69 dB and S/N ratio 42 dBStorage: 4 Gb SD memory cardOperation: -10 to 40° C, 30-85 % humidity |
Model specifications are taken from the supplied Euromex catalogue and linked manufacturer resources. Configurations can vary by catalogue number. HAYU can confirm current supplied components before ordering.
videos
Watch and learn
Videos load only after you select Play. Hosted by Vimeo.
Series tutorial: HD-Mini VC.3023/3024-HDS — tutorial
Manufacturer tutorial for the named series or configuration. Match the supplied components to the specification above.
Open video separatelyGeneral microscopy technique: Parfocality adjustable adapters — Video tutorial
General training video. It may show different equipment.
Open video separatelyGeneral microscopy technique: Parfocality standard adapters — Video tutorial
General training video. It may show different equipment.
Open video separately
included
What is supplied
Supplied with 0.37x objective, HD screen, HDMI cable, 23.2 to 30 mm and 23.2 to 30.5 mm adapter rings for stereo microscopes and computer mouse
Additional cameras, stands, adapters and accessories are included only when named in this product’s supplied configuration.
accessories
Explore compatible accessories
SB.9850Euromex SB.9850 C-mount adapter with 0.50x lens for 1/2 inch camerasNZ.9850Euromex NZ.9850 C-mount adapter with 0.5x lens for 1/2 inch camerasAE.1110Euromex AE.1110 Stage micrometer 1 mm divided in 100 parts, 10 µm per divisionAE.1111Euromex AE.1111 Stage micrometer 2 mm divided in 200 parts, 10 µm per divisionAE.1112Euromex AE.1112 Micrometer 76 x 26 mm slide, 50 mm/500 divisions, 100 µm per divisionAE.9855-LEuromex AE.9855-L 0.55x C-mount adapter for Leica DM microscope with 35 mm photo port and 1/2 inch C- mount camerasAE.9850-OEuromex AE.9850-O 0.50x C-mount adapter for Olympus microscope with 42 mm photo port and 1/2 inch C- mount camerasAE.9855-NEuromex AE.9855-N 0.55x C-mount adapter for Nikon microscope with 38 mm photo port and 1/2 inch C-mount camerasAE.9850-ZEuromex AE.9850-Z 0.50x C-mount adapter for Zeiss PrimoStar and PrimoStar
Listed by the manufacturer for this series. Compatibility can depend on optical configuration, head or stand. Confirm the fit for VC.3023 before ordering.
documents
Manuals and technical documents
HD-Mini VC.3023/3024-HDS — user manual HD screenPDF ↗HD-Mini VC.3023/3024-HDS — user manualPDF ↗Camera comparison English — manufacturer PDFPDF ↗HD Mini color camera VC.3023 product datasheet English — manufacturer PDFPDF ↗HD Mini color camera HD VC.3024 HDS product datasheet English — manufacturer PDFPDF ↗Adapters an overview English 11 — manufacturer PDFPDF ↗Euromex warranty and supply termsPDF ↗
support
Choose with confidence
Need help with VC.3023?
Tell HAYU Biomedical about your sample, required observation or measurement, and existing equipment. Include this catalogue number so we can check the configuration and compatible accessories.
Ask about this productResearch and education use only. Not intended for clinical diagnosis or therapeutic use.
Need help selecting the correct product or pack size?Our team can review your application, compatibility and supply requirements.
EUROMEX · HAYU BIOMEDICAL
