PRODUCT INFORMATION

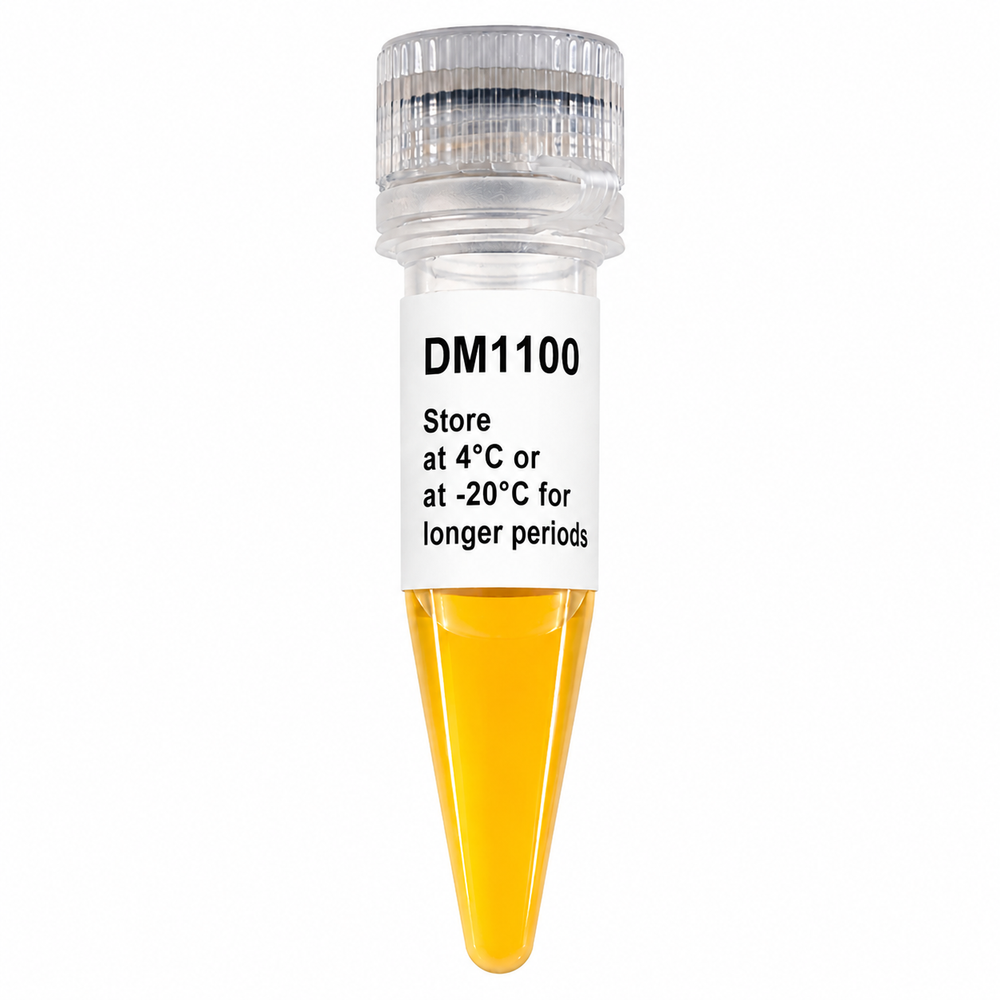

ExcelBand™ 50 bp DNA Ladder, 500 µL
UK/EU ordering: add this item to cart, review your order, then continue securely to checkout.
PRODUCT INFORMATION
Clear technical information,
without the clutter.
01 Description, applications & specifications
Description
ExcelBand™ 50 bp DNA Ladder, 500 µL is a ready-to-use DNA size standard containing 17 fragments ranging from 50 to 1,500 bp. It is premixed with loading dye for direct loading onto agarose gels.
The 200 bp and 500 bp fragments have enhanced intensity for quick orientation. Orange G tracking dye migrates similarly to approximately 50 bp double-stranded DNA, enabling real-time monitoring during electrophoresis.
Key Features: 50–1,500 bp range • 17 DNA fragments • Enhanced 200 bp and 500 bp reference bands • Sharp band resolution • Ready to use • Premixed with loading dye • Orange G tracking dye • Recommended loading volume of 5 µL per well • Long-term storage at −20°C
Applications: Agarose Gel Electrophoresis • DNA Fragment Sizing • PCR Product Analysis • Restriction Digest Analysis • Molecular Cloning • Genotyping • General Molecular Biology Research
Compatibility: Suitable for routine agarose gel electrophoresis and common nucleic-acid gel-staining systems. Gel concentration and running conditions should be selected according to the DNA fragment sizes being analysed.
Packaging: One vial containing 500 µL of ready-to-use DNA ladder.
Manufacturer: SMOBIO Technology
Technical Specifications
| Specification | Details |
|---|---|
| SKU | DM1100 |
| Product Name | ExcelBand™ 50 bp DNA Ladder |
| Series | ExcelBand™ |
| Product Size | 500 µL |
| Size Range | 50–1,500 bp |
| Number of Bands | 17 |
| DNA Fragment Sizes | 1,500, 1,200, 1,000, 900, 800, 700, 600, 500, 450, 400, 350, 300, 250, 200, 150, 100 and 50 bp |
| Enhanced Bands | 200 bp and 500 bp |
| Total DNA Concentration | 54 µg per 500 µL |
| Recommended Loading Volume | 5 µL per well |
| Format | Ready to use; premixed with loading dye |
| Tracking Dye | Orange G |
| Tracking-Dye Migration | Approximately equivalent to 50 bp double-stranded DNA |
| DNA Source | Phenol-extracted PCR products and double-stranded DNA digested with specific restriction enzymes |
| Buffer | 10 mM Tris-HCl, pH 8.0, and 10 mM EDTA |
| Room-Temperature Stability | 6 months |
| Stability at 4°C | 12 months |
| Stability at −20°C | 36 months |
| Manufacturer | SMOBIO Technology |
| Classification | Research Use Only (RUO) |
Note: DNA migration and apparent fragment size may vary with agarose concentration, electrophoresis buffer, voltage and staining method. Use the recommended loading volume as a starting point and optimise when necessary.
